AC220V 50/60 Hz Roll-to-roll RFID Tag Data Personalization Machine YPM-R2R

Roll-to-roll RFID Tag Data Personalization Machine YPM-R2R

RFID Tag or NFC Tag Data Encoder/RFID/NFC Tag Chip Data Writer

RFID/NFC Tag Chip Data Perso Machine /Roll-to-roll RFID Tag tester or Proofreader

1.Roll-to-roll RFID Tag Data Personalization Machine YPM-R2R_Introduction

Roll-to-roll RFID Tag Data Personalization Machine YPM-R2R is developed for realizing such functions as electrical performance detection, block data writing and encryption (change key) for various roll-to-roll RFID tags including high frequency HF tags/ultra-high frequency UHF tags/NFC tags. This machine can greatly increase NFC tag personalization work efficiency.

Note: This machine shipment does not include the supply of the computer to be linked with. The user will use its own computer with the installation of the matching control program for us.

2.Roll-to-roll RFID Tag Data Personalization Machine YPM-R2R_Key features:

1). It is featuring good tape tension control with adjustable tension for labels of various sizes;

2). The machine is equipped with a high-frequency HF reader by default configuration, and an optional ultra-high frequency UHF reader is available for additional selection.

3). The operating software is independently developed and easy in operation. It is compatible with tag chips from multiple chip manufacturers.

4). The machine can achieve various chip data writing and encryption functions, and has various data tracking and querying functions such as logs.

3.Roll-to-roll RFID Tag Data Personalization Machine YPM-R2R_Technical parameters:

1). Dimensions: L1100mm*W620mm*H520mm, GW:48Kg

2). Power supply: AC220V 50/60 Hz 1.5Kw

3). Control mode: Mitsubishi PLC+ computer (Note: The computer is not included in this device offer, and normally the user can user their own computer to connect and work with this device.)

4). RFID Tag width: 20-260mm.

5). Work speed: Read and write speed varies from 3000 to 8000 CPH according to the data content.

4.Roll-to-roll RFID Tag Data Personalization Machine YPM-R2R_Functions

Roll-to-roll RFID Tag Data Personalization Machine YPM-R2R can be known or named as Desktop RFID/NFC Tag Data Personalization Device, RFID Tag or NFC Tag Data Encoder, Desktop RFID/NFC Tag Chip Data Writer, RFID/NFC Tag Chip Data Writer, RFID Tag/NFC Tag Chip IC Proofreader or RFID Tag or NFC Label Roll-to-Roll Data writer.

RFID Tag Personalization Machine

Roll-to-roll RFID Tag Machine

Roll-to-roll RFID Tag Personalization Machine

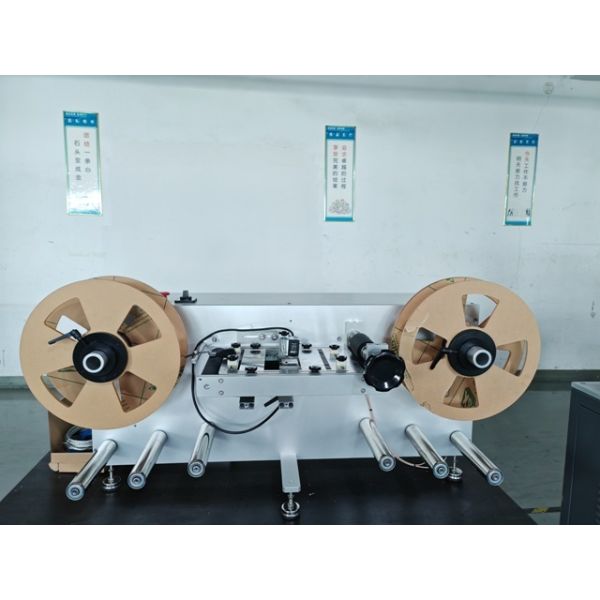

AC220V 50/60 Hz Roll-to-roll RFID Tag Data Personalization Machine YPM-R2R Images
